Serial Coordinate Measuring Mechanism is an electro-mechanical coordinate measuring device. The device can measure coordinates of a point as well as that of the approach vector to the point. This device has 5 degrees of freedom (5 Axes). Each joint is mounted with mini incremental encoders to sense the joint angles. The device is supported by an encoder interface, driver software for real time data processing and GUI to log and read the measurements in various modes.

1. Portable, modular & cost effective
2. User-friendly device and GUI
3. Can be used for reverse engineering applications and as an educational kit.
4. The point cloud data generated can be imported to commercial CAD packages for modeling.
5. Eliminates the ‘Line of sight’ problem as compared to camera based measurements.
6. An integral part of neurosurgical suite developed by BARC.

1. This device can be used for patient surgical-registration and surgical-navigation in surgical procedures. It can also be used for FNAC procedures.
2. For reverse engineering applications involving feature (surface and volume) generation from a given object.
3. R&D and Academic institutions for engineering measurement laboratories and Bio-metrological laboratories.

Serial Coordinate Measuring Mechanism is a portable electro-mechanical coordinate measuring device. The device can measure coordinates (X, Y, Z) of a point as well as the approach direction to the point. By tracing on any surface by probe tip, a point cloud can be generated. This point cloud data can be processed by a commercial CAD package for several applications such as shape/ form generation of an object for reverse engineering applications, establishing frame of reference in medical applications and feature measurement & comparison of manufactured components.

The device is primarily designed towards surgical-registration and surgical navigation application in Neurosurgical suite. It can also be used as a standalone measurement device for other applications.

1. A five DOF passive (no motors/actuators) mechanism.
2. Encoder Interface: It is interfaced with SCMM with a cable and is connected to a PC via. a USB cable and requires a 220V power supply.

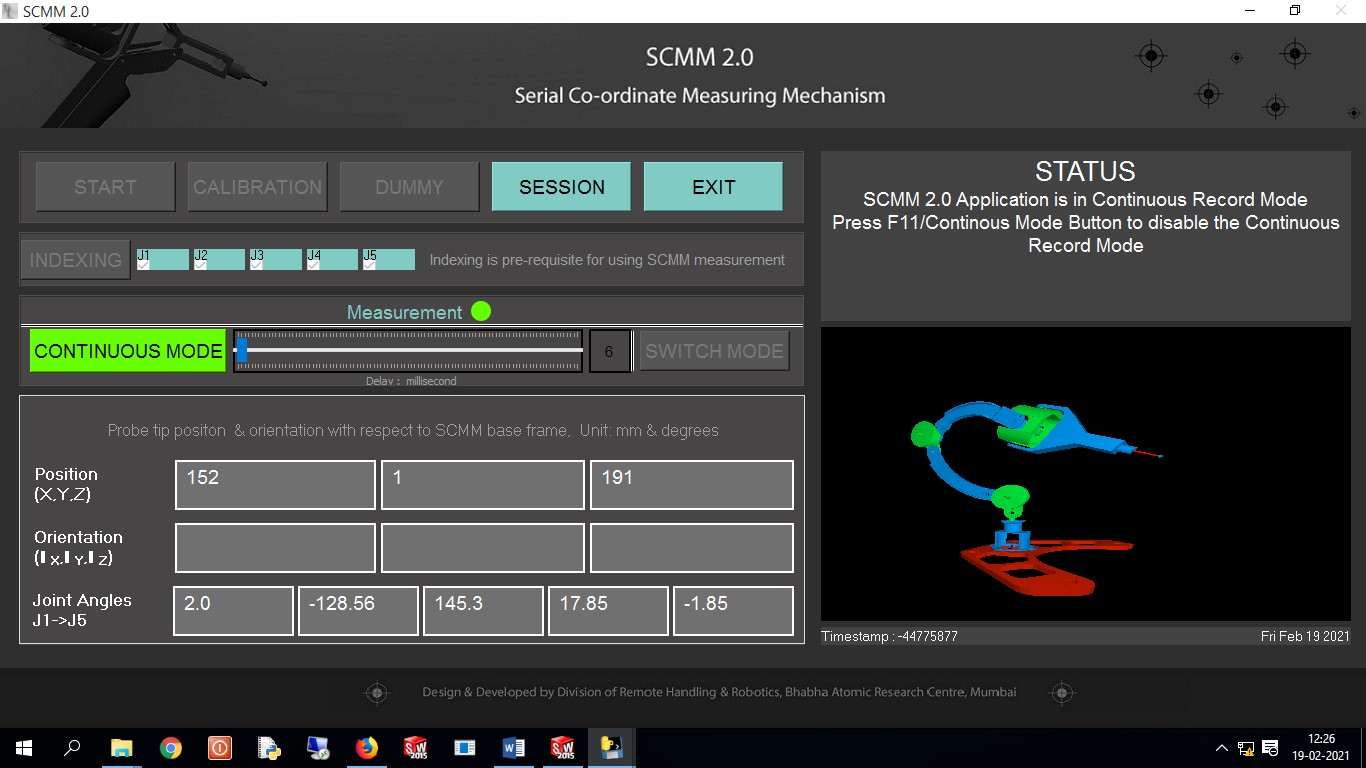

3. PC with Windows 7 (and above) operating system with SCMM software module application.

Technical Specifications

Sr. No.	Specification	Value
1	Degree of Freedom	5
2	Reachable Workspace	600 mm (in height)
3	Repeatability*	0.5 mm
4	Weight	4.5 kg
5	Overall Size (Box)	450×400×450 mm3
6	Power Supply	220 V, 50 Hz
7	Operating System	Windows 7 or later
8	Accuracy	1.5 mm

1. Portable, modular & cost effective
2. User-friendly device and GUI
3. Can be used for reverse engineering applications and as an educational kit.
4. An integral part of neurosurgical suite developed by BARC
5. The point cloud data generated can be imported to commercial CAD packages for modeling.

1. This device can be used for patient surgical-registration and surgical-navigation in surgical procedures. It can also be used for FNAC procedures.
2. For reverse engineering applications involving feature (surface and volume) generation from a given object.
3. Educational kit for enhancing imagination and visualization

MANPOWER

1. Mechanical engineer - 1
2. Diploma/degree in Electrical/Electronics - 1
3. Diploma/ degree in Computer science - 1
4. Mechanic with CNC knowledge -1

Machines

1. Manufacturing facilities with CNC machine, assembly and inspection facilities, design & drafting facility, electrical & computing facility

CAPITAL

1. Approx.1 Cr. (depends on the level of outsourcing/in house manufacturing facilities)

SPACE

1. Approx.10,000 sq. feet (depends on the level of outsourcing/in house manufacturing facilities)
