About the technology

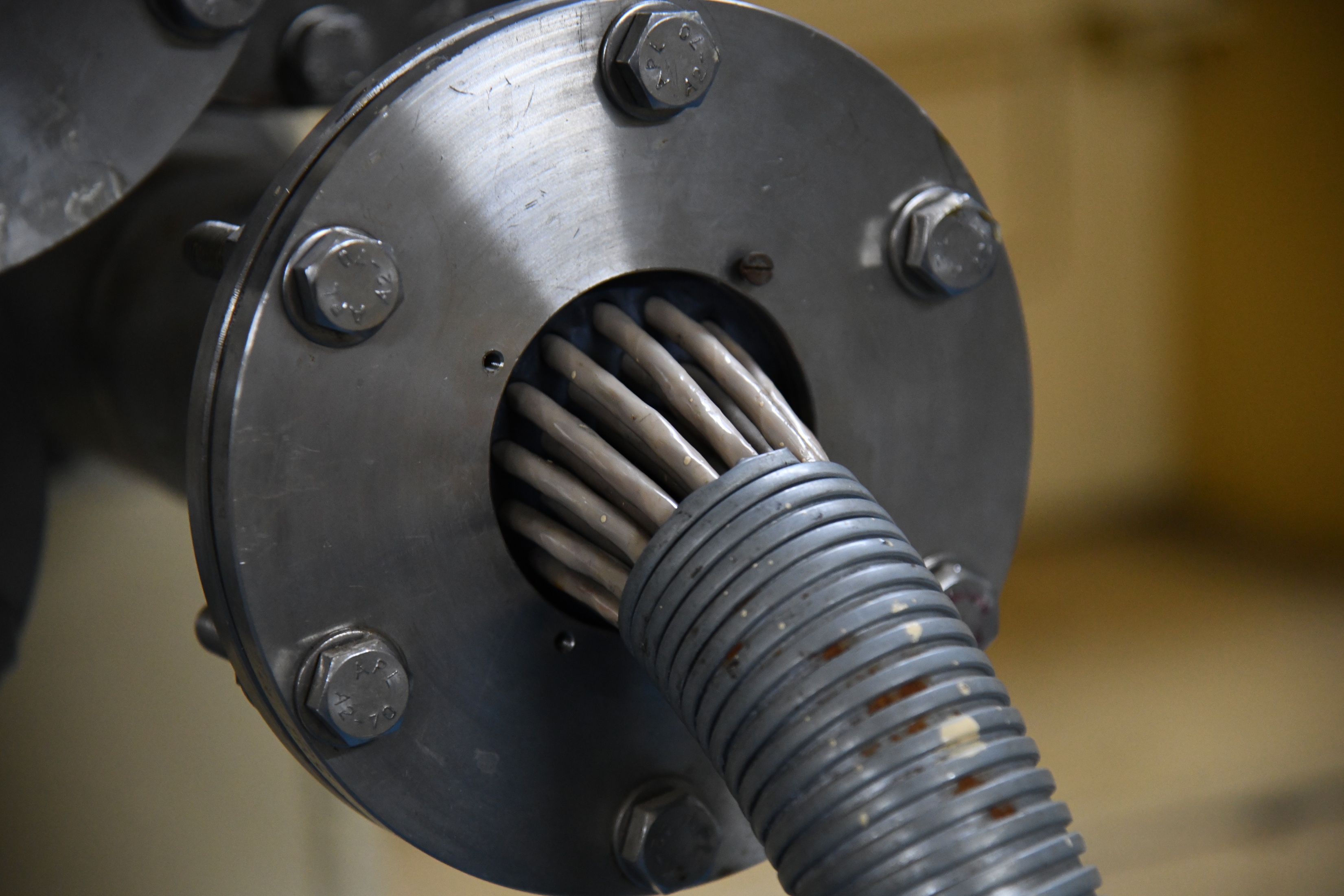

Leak tight flange and gasket can be used in nuclear plants and chemical plants where radioactive or hazardous materials are being handled. It will enable routing of bunch of data cables or power cables vide CS/SS pipes embedded in the walls of concrete or steel containments for the instruments /equipment placed inside ensuring leak tightness is achievable without any sealant, which enables replacement of any single or multiple cable(s) within a short time. A specially designed gasket would hold the cables air tight, preventing the spread of hazardous air outside. The gasket is so designed that the axial force applied would be converted into radial force which would act on the cable surface and make the joint air tight. The sealing is achievable without the use of sealant. Replacement of a single or multiple cable(s) shall be achievable with minimum man hour operation.

1. Leak tightness achieved without the use of sealant adhesive.
2. Helium leak tested using spray method for vacuum application and the leak rate observed was 2.0x10^-8 mbar l/s.
3. Helium leak tested using sniffer technique at 1 Bar.
4. Suitable for routing bunch of cables without leak.
5. Minimum bolt force required for achieving the required sealing.
6. Reduction of frictional force between flange and gasket.
7. Minimum strain in unwanted direction.
8. Channelizing the applied force on the intended area efficiently hence better sealing.
9. Effective transfer of applied force over the cable surface and easy retrieval of gasket.

SPECIAL FEATURES

1. Leak tightness achieved without the use of sealant adhesive.
2. Helium leak tested using spray method for vacuum application and the leak rate observed was 2.0x10^-8 mbar l/s.
3. Helium leak tested using sniffer technique at 1 Bar.
4. Suitable for routing bunch of cables without leak.
5. Minimum bolt force required for achieving the required sealing.
6. Reduction of frictional force between flange and gasket.
7. Minimum strain in unwanted direction.
8. Channelizing the applied force on the intended area efficiently hence better sealing.
9. Effective transfer of applied force over the cable surface and easy retrieval of gasket.

FLANGE MATERIAL SPECIFICATION

Main/Counter flange, spacer, Gasket retriever ring, fasteners: Stainless steel

ELASTOMER SPECIFICATION

Solid Gasket :

1. Material: EPDM (100 % pure)
2. Hardness: Shore A 45 ± 5
3. Method of manufacture: Moulding
4. Radiation resistance: 10⁶ Gy
5. Temperature limit :100°C

Flat ring gasket :

1. Material: EPDM (100 % pure)
2. Hardness: Shore A 45 ± 5
