PC BASED AUTO TLD BADGE READER
(MODEL TLDBR 7B)

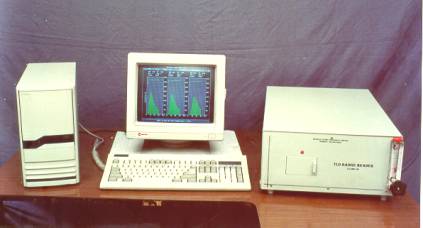

PC based automatic TLD badge reader (Auto-TLD BR) has been developed to ensure health and safety of persons working in radiation environment, to monitor the radiation dose received by them and maintain a record. The Auto-TLD BR (Model TLDBR 7B) is capable of automatically evaluating 50 TLD badges and has following improved features over manual TLD Badge reader(TLD BR-3B)

Salient Features

• Automatic feeding of 50 TLD badges

• PC based design

• Glow curve storage for authenticating the recorded dose

• Extensive PC-resident software for reader control & dose evaluation

• Built-in diagnostic software & safeguards against malfunctioning

• Fast readout: 30 sec per dosimeter with electronically controlled gas heating

• Range: 1µSv to 5 Sv

Applications

• Personnel Monitoring of radiation workers in Nuclear power stations, Isotope laboratories, Industrial radiography installations, diagnostic & therapeutic radiology centres, etc.

For details contact :


    Head, Technology Transfer & Collaboration Division,
    BHABHA ATOMIC RESEARCH CENTRE,
    TROMBAY, MUMBAI - 400 085
    Fax : 091-022-25505151
    Email : technology@barc.gov.in
