Industrial Application

Triode Sputter Ion Pump

  • Application Areas:
    • These pumps operate in the pressure range 10 -3 to 10-10 Torr. They do not require the services of a backing pump continuously but only need initial fore pressure of 10-3 Torr. The discharge current being proportional to the background pressure, the pumps also serve as pressure measuring gauges. These pumps are used to create UHV (Ultra High Vacuum) in charged particle accelerators, surface analytical spectrometers, mass spectrometers etc. Technology for 35, 70, 140 & 270 LPS capacity pumps. The triode sputter ion pumps are used to create ultra high vacuum in charged particle accelerators, surface analytical spectrometers, mass spectrometers etc. R&D institutes, universities may require such types of pumps.
  • Technology Transfer Fee: Rs.2,50,000/-
  • Infrastructure and manpower requirements
    • Workshop with Machining, Fabrication and assembly facility
    • One Fitter trained in clean assembly and vacuum procedures
    • One Engineer and two assistants for fabrication and testing.More

Note: Note: The know-how is offered in the form of technology document containing detailed drawings, specifications, fabrication, assembly and testing procedures, process description, equipment required, sources of material supplies, scope and caution as applicable to each technology. BARC will also arrange training for the personnel for a few days as needed for that specific technology.

Contact Persons:

  1. Dr Amar Banerji, Email: drhr@barc.gov.in, Phone: 022-25590513
  2. Shri BSVG Sharma, Email: technology@barc.gov.in, Phone: 022-25595137

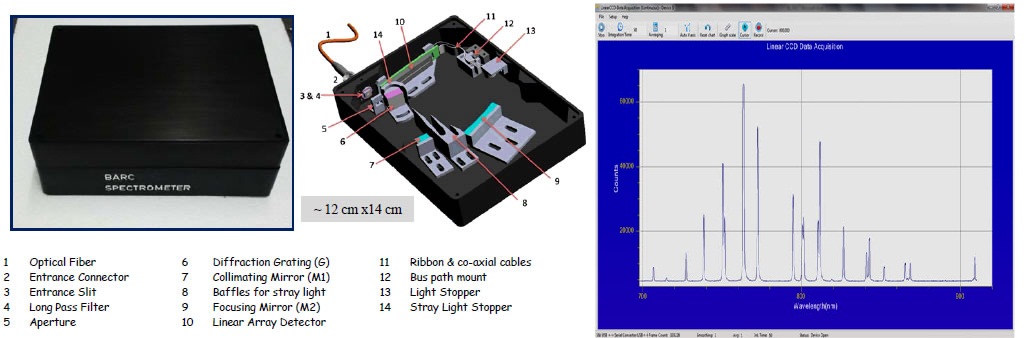

Optical Spectrometer
This spectrometer developed by BARC is compact, light weight, portable and cost effective. It is based on Diffraction Grating and Linear Array Detector (the Image Sensor). Unlike conventional spectrum analyzers, there is no mechanical scanning (through rotation of grating) to capture the spectrum. This makes it faster and wear free

  • Application Areas:
    • White Light Interferometry (Fiberoptic sensors, Thin film and Optical Coherence Tomography),Color identification (Textile, Paint, Printing, Paper, Fruit, Wine, LED, Analytical Chemistry)
    • Laser measurement (Wavelength of tunable lasers)
    • Gemology (Natural and Artificial Stones)
    • Fluorescence (Biological, Biomedical, Plasma), Solar measurement
  • Technology Transfer Fee: Rs. 3,00,000/-
  • Infrastructure and manpower requirements
    • Working space 500 Square Feet area and dust free dark room for optical assembly, Electronics fabrication and testing facilities and Software Development infrastructure, Mechanical Fabrication: Milling Facility for optical bench,Light Sources (Mercury-Argon, Neon) with fibre optic cable for calibration, Skilled Manpower in embedded systems, electronics, software and optics.More

Note:The know-how is offered in the form of technology document containing detailed drawings, specifications, fabrication, assembly and testing procedures, process description, equipment required, sources of material supplies, scope and caution as applicable to each technology. BARC will also arrange training for the personnel for a few days as needed for that specific technology.

Contact Persons:

  1. Dr Amar Banerji, Email: drhr@barc.gov.in, Phone: 022-25590513
  2. Shri BSVG Sharma, Email: technology@barc.gov.in, Phone: 022-25595137

Compact Full Range Vacuum Gauge

  • Application Areas:
    • The full range vacuum gauge developed in BARC, is a single flange mounted gauge that works over the entire pressure range of 760 Torr to less than 10-9 Torr.
    • Vacuum measurement forms a critical requirement in various instruments such as charged particle accelerators, surface analytical equipment, mass spectrometers, etc
  • Technology Transfer Fee: Rs. 4,35,000/-
  • Infrastructure and manpower requirements
    • A workshop with Machining and assembly facility.
    • One Fitter trained in clean assembly and vacuum procedures.
    • One electronics engineer and one assistant for fabricating control unit.More

Note:The know-how is offered in the form of technology document containing detailed drawings, specifications, fabrication, assembly and testing procedures, process description, equipment required, sources of material supplies, scope and caution as applicable to each technology. BARC will also arrange training for the personnel for a few days as needed for that specific technology.

Contact Persons:

  1. Dr Amar Banerji, Email: drhr@barc.gov.in, Phone: 022-25590513
  2. Shri BSVG Sharma, Email: technology@barc.gov.in, Phone: 022-25595137

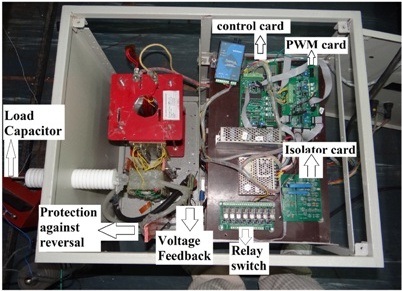

3kJ/s, 30kV, 200mA Capacitor Charging Power Supply

  • Application Areas:
    • High performance lasers
    • Medical sterilization
    • Rock crushing
    • Arc lamps, flash lamps, and flash x-ray systems
  • Technology Transfer Fee: Rs. 3,60,000/-
  • Infrastructure and manpower requirements
    • 3 phase power supply through 32 A MCCB. Standard laboratory equipments for testing high voltage supply are required.  A minimum distance of 5 m should be maintained between the charged system and the working personnel for electrical safety reasons. Proper grounding (~1Ω) must be provided to the CCPS prior to the operation or testing. Dimension of CCPS (standard as per 6U industrial rack) are 26.4cm X 48cm X 52cm
    •  An electrical engineer, a mechanical fitter & one trained technician would be needed to make it.More

Note:The know-how is offered in the form of technology document containing detailed drawings, specifications, fabrication, assembly and testing procedures, process description, equipment required, sources of material supplies, scope and caution as applicable to each technology. BARC will also arrange training for the personnel for a few days as needed for that specific technology.

Contact Persons:

  1. Dr Amar Banerji, Email: drhr@barc.gov.in, Phone: 022-25590513
  2. Shri BSVG Sharma, Email: technology@barc.gov.in, Phone: 022-25595137
