Compact High Stability High voltage Power Supply (5kV/2mA)
  • Overview
  • Quick View Leaflet
  • Detail Technical Brochure
  • Application Procedure
A purely organic, seed dressing bio-fungicide formulation of an improved Trichoderma Virens Mutant Strain
Overview

High stability, high voltage power supplies find numerous applications in analytical instruments. This module provides a 50ppm stable adjustable output of up to 5kV @ 2mA, with a low ripple content of 100mV (p-p).

This HV module can be used for ion acceleration, ion optics, channel electron multipliers, photo multipliers, electrostatic lens, energy analyzers and a lot of other analytical applications.



Compact High Stability High voltage Power Supply (5kV/2mA)
Compact High Stability High voltage Power Supply (5kV/2mA)
Quick View Leaflet

High stability, high voltage power supplies find numerous applications in analytical instruments.

This module provides a 50ppm stable adjustable output of up to 5kV @ 2mA, with a low ripple content of 100mV (p-p). The module can be configured for a positive or negative polarity output. This module is short circuit and arc protected for reliable and trouble free operation.

This HV module can be used for ion acceleration, ion optics, channel electron multipliers, photo multipliers, electrostatic lens, energy analyzers and a lot of other analytical applications.

Compact High Stability High voltage Power Supply (5kV/2mA)
Detail Technical Brochure

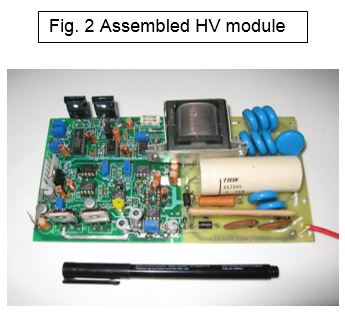

BARC has developed a compact, high stability, high voltage module operating off 24V dc. In general, high stability, high voltage power supplies find numerous applications in analytical instruments. This HV module can be used for ion acceleration, ion optics, channel electron multipliers, photo multipliers, electrostatic lens, energy analyzers and a lot of other analytical applications. This module provides a 50ppm stable output of up to 5kV @ 2mA, with a low ripple content of 100mV (p-p). The module can be configured for a positive or negative polarity output.

The HV module operates on 24V/1A DC input and produces an adjustable output, voltage from 0 to 5kV with a maximum load current of 2mA.The module design is based on compound regulation technique wherein a linear regulator feeds power to a high frequency DC-DC converter (double ended flyback configuration) operating at around 50 kHz with a fixed duty cycle of 10%. High regulation is achieved by a high gain dc feedback closed loop circuit.


This module is protected against two common potentially disastrous faults; accidental shorts to ground and overload currents, for reliable and trouble free operation.




TECHNICAL SPECIFICATIONS

The detail specifications about the power supply are given below :

Parameter Specifications
Input voltage 24V DC ± 1V
Output voltage 0 to +5kV correspond 0 to 10V ref. input
Line regulation 0.001% for ±1V Input Change
Load regulation 0.001% for 10% to 100% Load Change
Ripple < 100mV p-p at full load
Stability 10 ppm (Short Term)
50 ppm (Long Term) 8 hours with 0.5 hour warm up
Protection Short Circuit with Self Recovery and arc Protected.
Dimensions of the HV module (L×W×H in cm) 20cm×10cm×5cm



Who Should apply


Interested parties with Engineering & Scientific knowledge, good financial background and adequate experience of products manufacturing & fabrication with technical capability in the area of interested technology and having or interested in setting –up facilities for production would be preferred.


How to apply

Send your Technology Transfer Application form duly filled and signed alongwith a Demand Draft/Bankers cheque of Rs. 500/- (for Indian entities) or US $50/- (for foreign entities) drawn in favour of “Accounts Officer, BARC” as application processing fee on following address:

Head, Technology Transfer and Collaboration Division
Bhabha Atomic Research Centre,
Trombay, Mumbai – 400 085, India.

Fax : +91-22-25505151


Note:Applications without processing fee as applicable above of Rs. 500/- or US $50/- for each technology will not be considered.
